Vertical Reciprocating Conveyors VCR Mezzanine Lifts for Increased
Productivity and Efficiency
Mezzanine Lifts Description:
Our industrial mezzanine lifts help increase productivity, safety
and efficiency. We offer package lifts, vertical material lifts,
hydraulic lifts, mechanical lifts, mezzanine accessories and
more.King Lift is your trusted source for mezzanine access lifts.
Made for long-lasting use, these lifts help increase productivity,
safety and efficiency.
| Model | Capacity(KG) | Min.height | Max.height | Platform size
L*W(mm) | Lifting time
(s) | Motor
(kw) | Self-weight (kg) |
| KLSJG1-5 | 1000 | 200 | 5000 | 2500*2000 | 30m/s | 4.0 | 2400 |
| KLSJG3-1.6 | 3000 | 300 | 1800 | 3000*2000 | 30m/s | 4.0 | 1650 |
| KLSJG3-2.5 | 3000 | 300 | 3050 | 2500*1500 | 30m/s | 3.0 | 1600 |
| KLSJG4-3 | 4000 | 400 | 3000 | 2200*1500 | 30m/s | 4.0 | 1700 |
| KLSJG4-5 | 5000 | 400 | 5000 | 3000*2500 | 30m/s | 7.5 | 4500 |
| KLSJG7-1.6 | 7000 | 400 | 1600 | 3000*2000 | 30m/s | 5.5 | 2480 |
Noted: Usually mezzanine lift width is 2000mm, if over 2000mm width, it
will need to spliced platform. And also can be custom as your
requirements!
Main Features:
- 1. Different thickness anti-skid checkered surface material design
as different load capacity, which can prevent people or goods slipping down, more safety.
- 2. High strength manganese material construction make the scissor
lift platform can load heavy weigh on it
- 3.16mm thickness lip make in one pieces or two pieces whatever all
as conveniently use
- 4. Japanese brand high quality oil sealing in the oil cylinder make it long life
- 5. First class quality hydraulic power unit Made In China Or
Imported Brand for option
- 6. Safety protected 1, with Anti-Explosion Valve
- 7. Safety protected 2, safety toe guard to protect users if need
- 8. Reserved lifting eye (hole) to make install lift table easier.
- 9. Copper sleeves in pivot points of the scissor arm.
- 10.High quality hydraulic power packs are made in China or
imported.
Parameters:
- Electric system: Hydraulic lifting actuation, Schneider or CHINT
electrical components ( Made In China) or Other Brands but same
level.
- Hydraulic System: Hycman,KS brand power pack or power unit (Made In
China) , Oiltec (Import brand) or other brands but same level.
- Scissor Arm Support: Hi-strength Manganese steel or rectangle tube
Q345 B
- Platform Surface : Antiskid checkered plate steel
- Main Support: 10# I beam, "U", rectangular tube different choose
that as different load capacity to be design.
- Deck lip platform steel thickness:6mm/8mm/10mm checkered plate or
flat steel which as customer require.
- High-pressure Oil hose: Double wire-steel mesh in hydraulic rubber
hose to ensure bear high pressure.
Mezzanine Lift Precautions:
1. Emergency valves make stop quickly.
2. Anti- Explosion safety valves between oil cylinder and oil tube
make hydraulic scissor lift stop when oil hose burst
3. Number of floor layers indicator
4. Door inter-locking device if indeed need
5. Buzzor for over height or over load , it same as alarm
protection
6. Running indicator
7. Aluminum safety bar under the platform to preventing when
scissor lift come down on feet of worker or other obstructions.
Optional Configuration:
- Hydraulic Power Pack: China power pack or imported power pack as
customer requirements.
- Lifting Meters from 0.5m to 12m to be option or customization
- Load capacity from 300kg to 15ton or as custom-made
- Safety prevention measures as custom-made.
Mezzanine Lift Applications:
1. Site: Work Shop, logistic center, Warehouse , storage
premises,etc.
2. Hydraulic elevating platforms application: Lifting and
Loading/unloading Cargo as dock leveler function, etc.

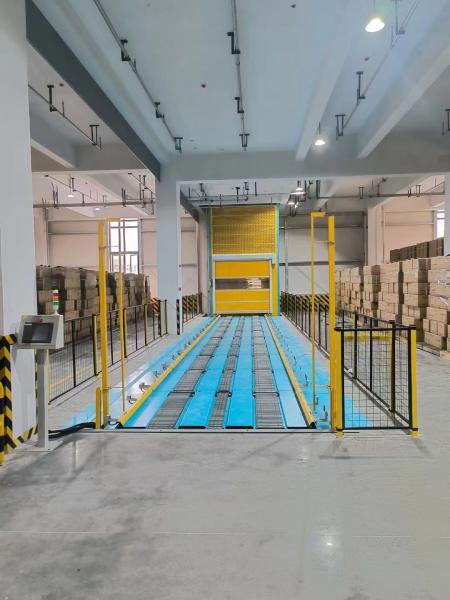

Mezzanine Lift Pictures:
